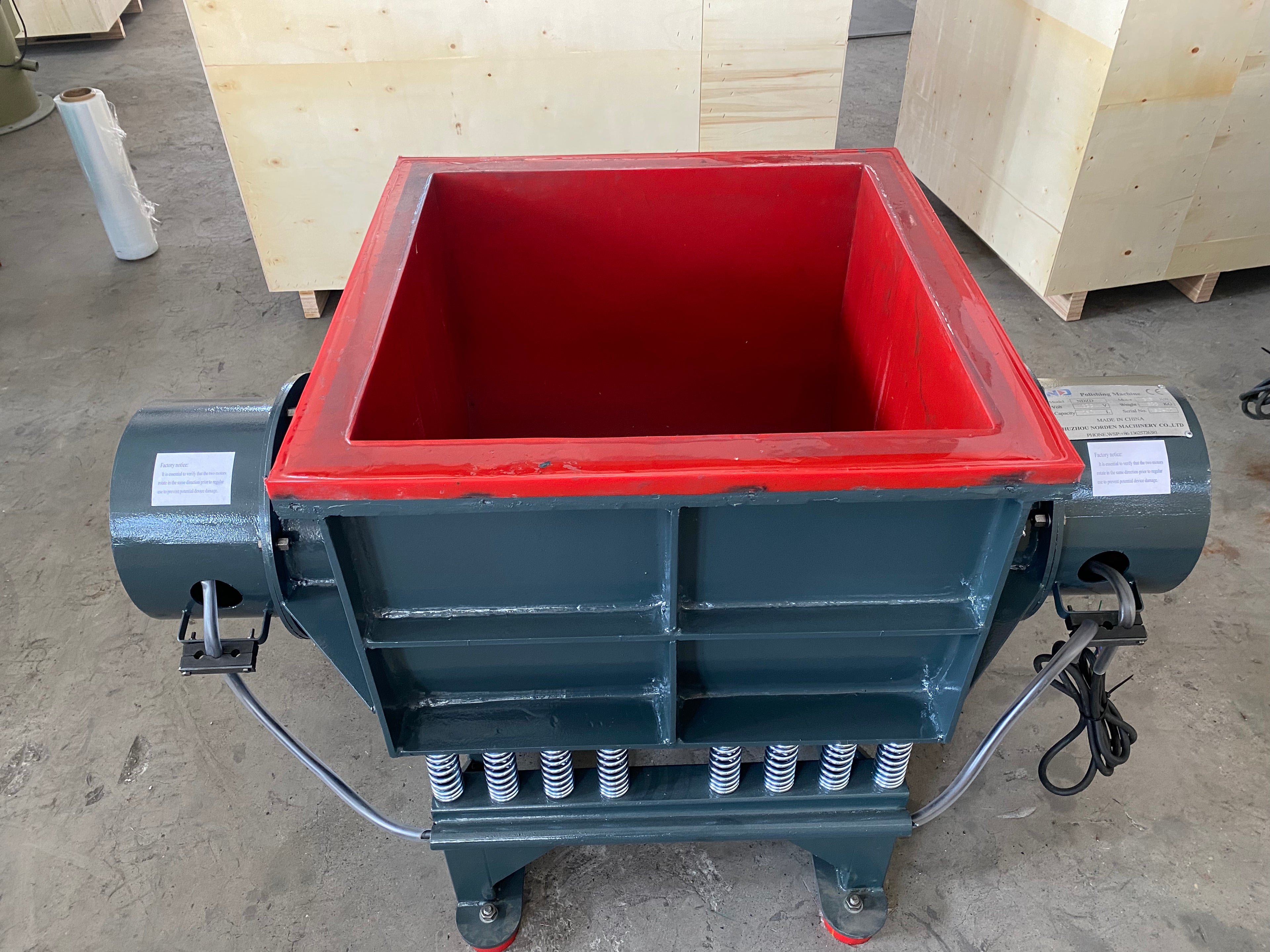

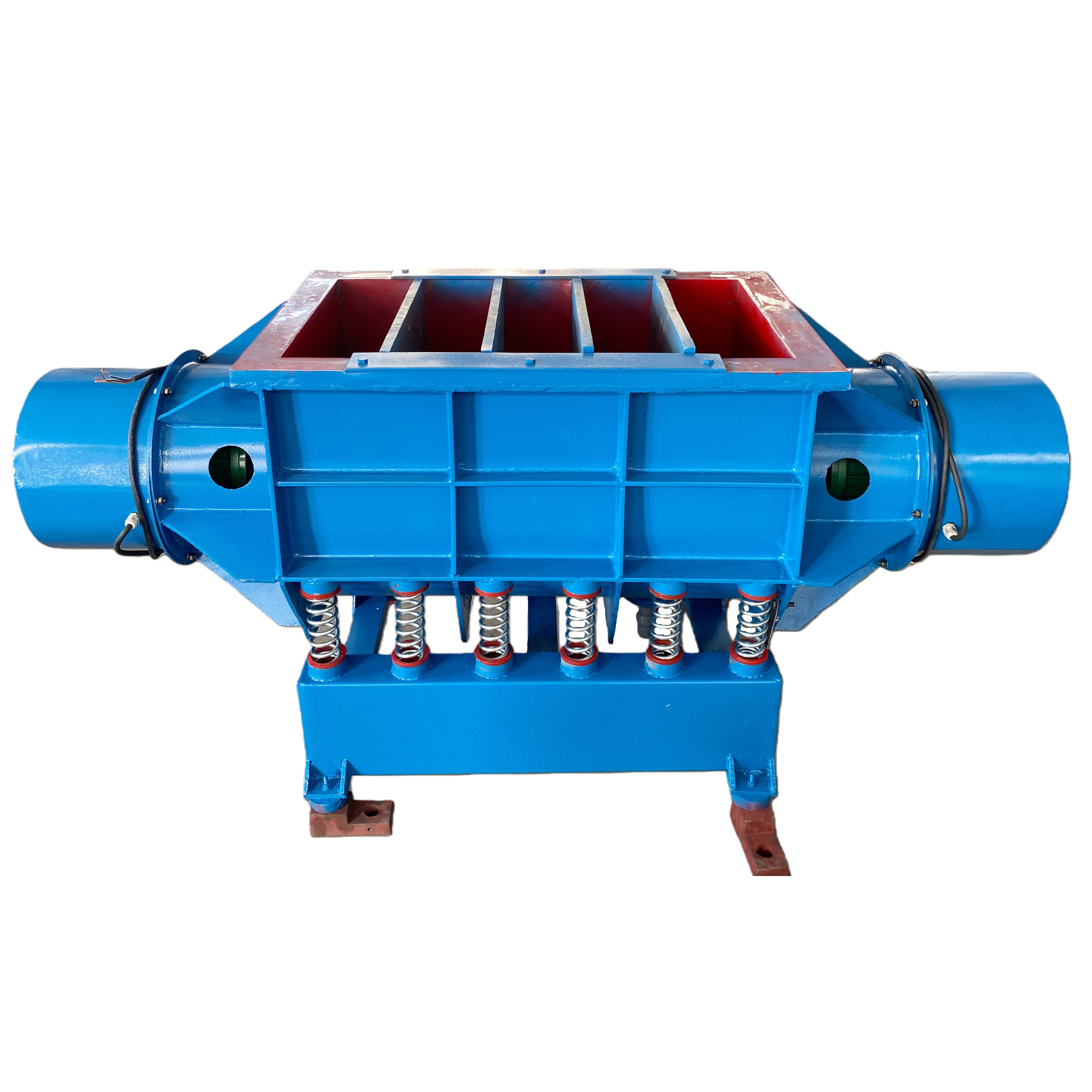

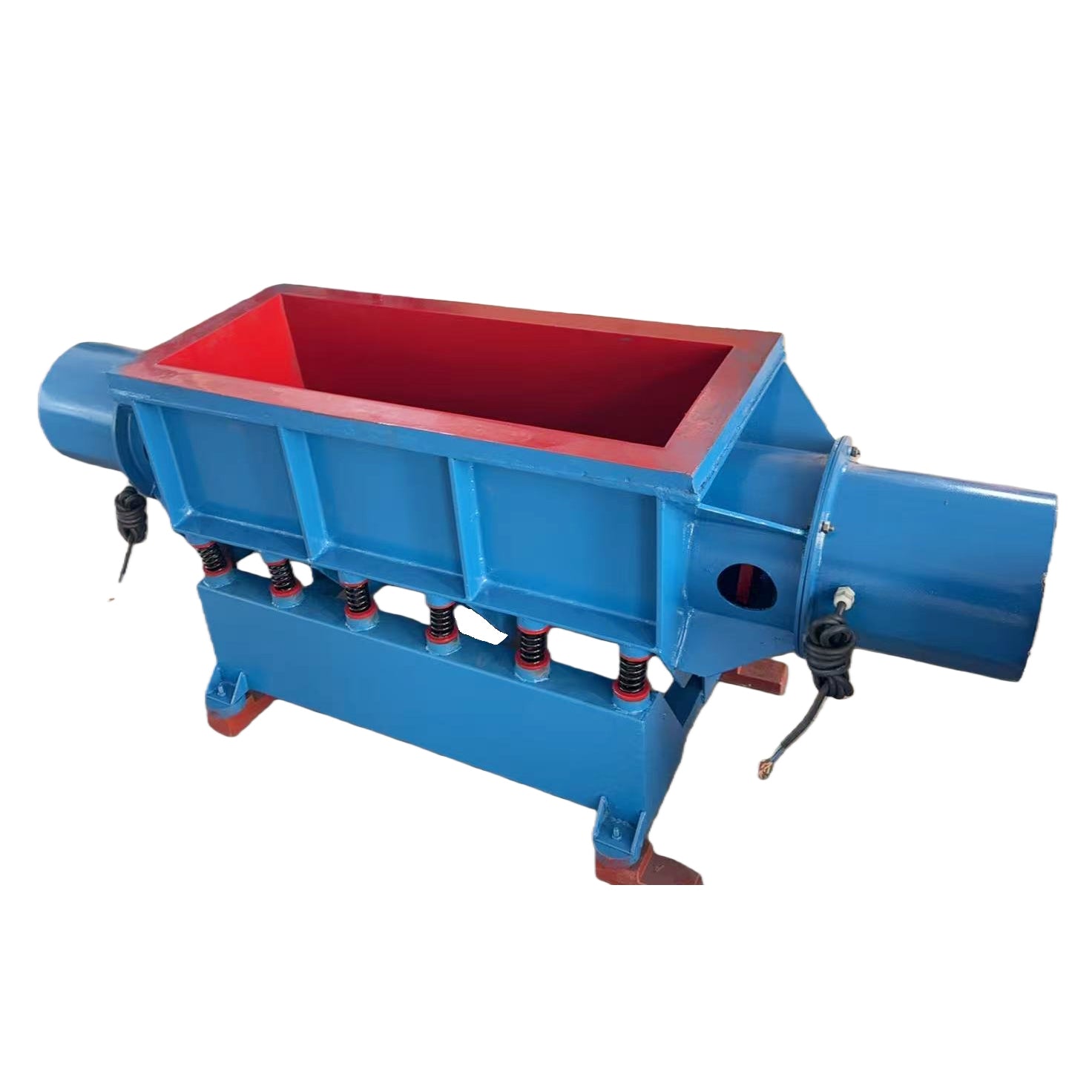

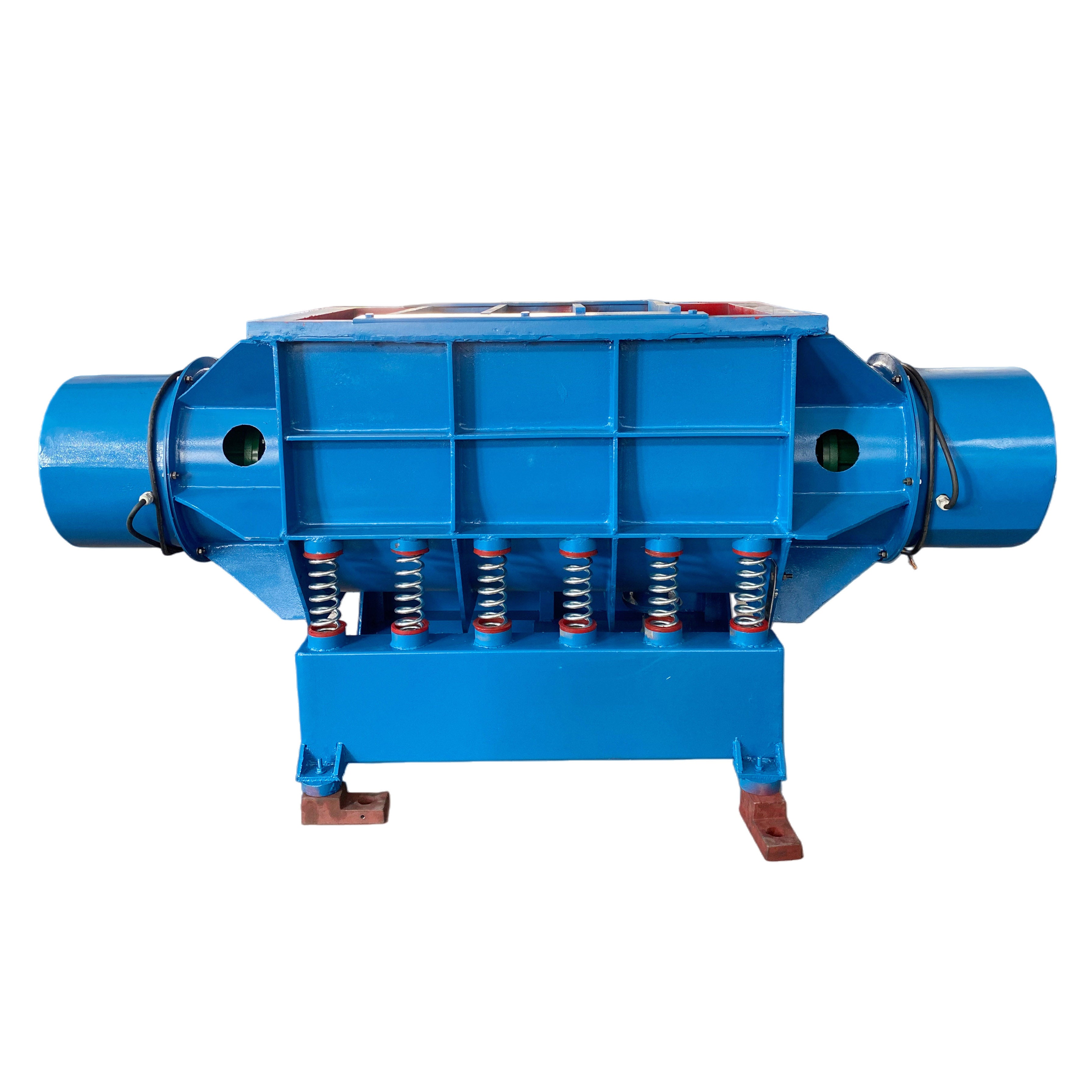

Tub Vibratory Finishing Machine for Long Part Finishing
640*450*450mm
$1,300.00
Skip to product information
Tub Vibratory Finishing Machine for Long Part Finishing
$1,300.00
Pickup currently not available
Vibratory Tubs finishing troughs are ideal for polishing huge parts and irregular-shaped parts. Round-shaped vibratory machines, though effective, can’t hold large or medium-sized parts. A rectangular container of the vibratory tub will be the best choice for finishing such parts. This machine is ideal for deburring engine components, cleaning and polishing automotive exhaust pipes, and polishing granite parts, etc.
Details
Voltage:220V / 380V / Customizable
Power: 1.1*2/ 1.5*2/ 2.2*2/3.0*2
Polishing effect: Mirror Shiny, Smooth Surface, Uniform Finishing
Shipping & Returns
Packaging: Wooden crate
Shipping: Sea freight, air freight, etc.
Warranty: 2 years (excluding wear-and-tear parts)
IS YOUR WORKSHOP EXPERIENCING THESE?
❌ The parts are too big and the opening of the vibrator is too small to fit them in.
❌ Complex parts cannot be processed effectively, resulting in high rework rates.
❌ Parts have numerous surface scratches and inconsistent quality.
❌ Parts quality is inconsistent after batch processing.
If you are experiencing these problems,
The trough vibratory polisher is the solution designed for you
Why Choose Tub Vibratory Polisher

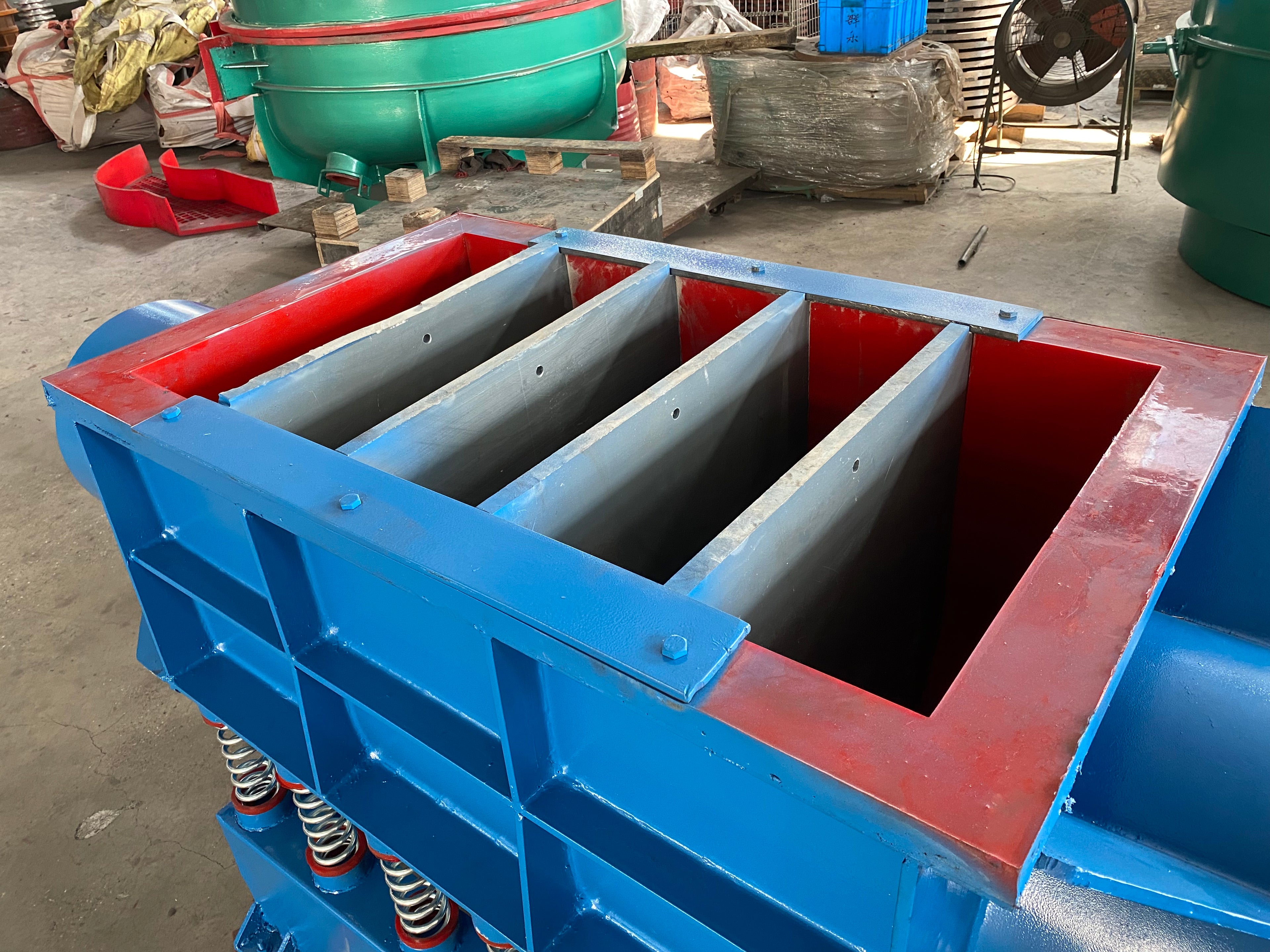

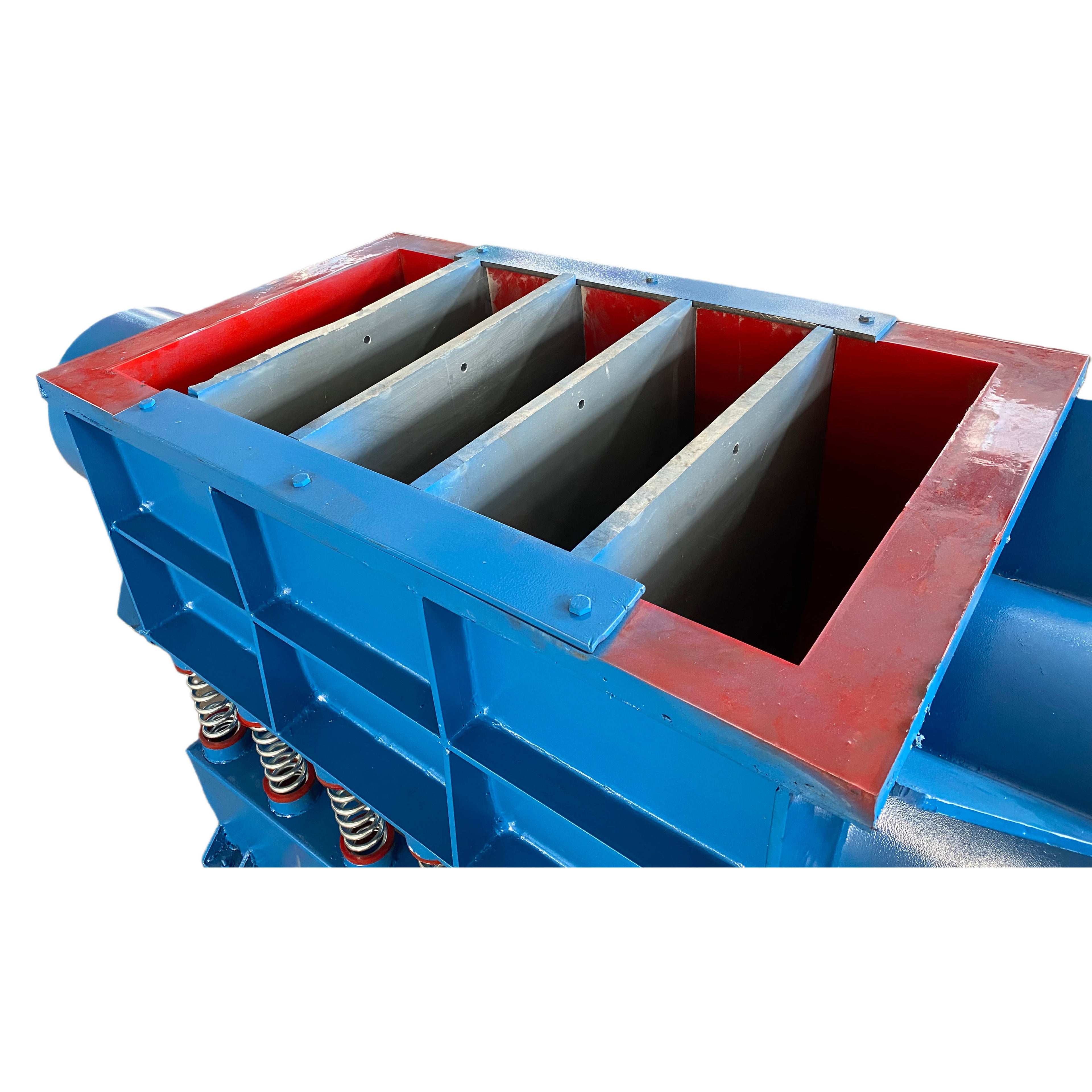

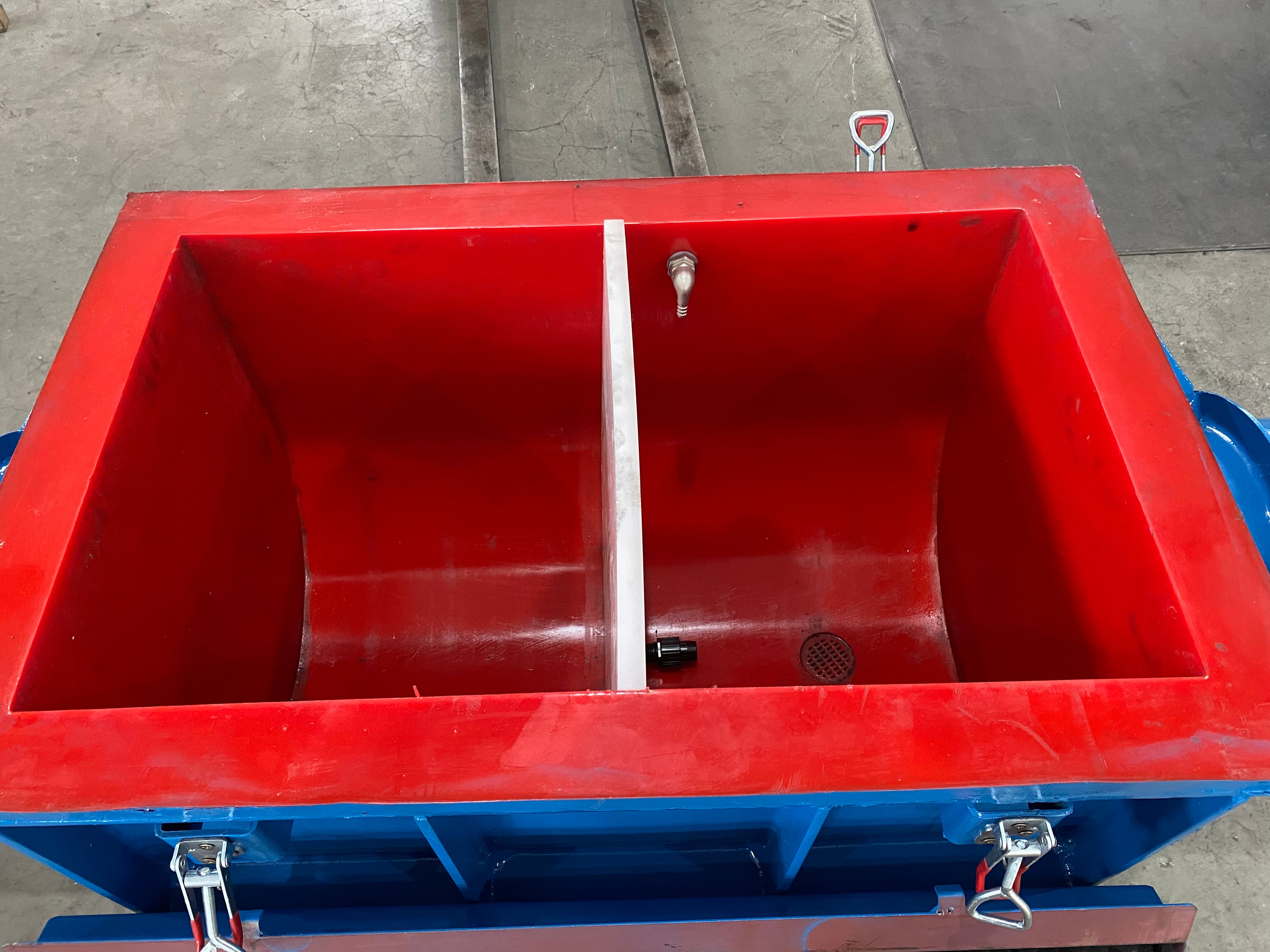

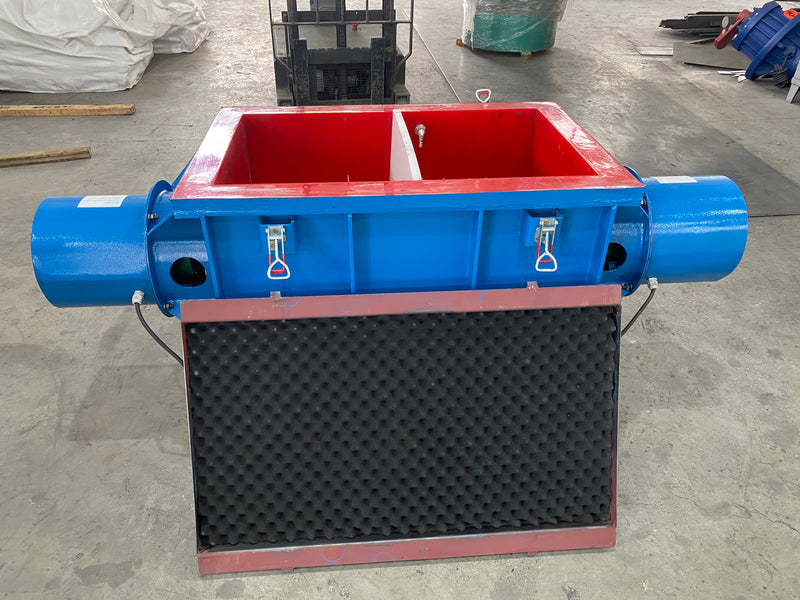

Removable divider
Can process sensitive parts or different parts separately
Prevents contact damage between components
Key Features
One machine handles all kinds of parts, from small to large, from simple to complex
High-Speed& Productivit
- 10-30x faster than manual polishing methods.
- Batch Processing Capability - Polish multiple pieces simultaneously.
Size Flexibility
- Wide Size Range, The working chamber size can be customized according to your part dimensions.
- Large Part Processing, The rectangular trough can polish large, irregularly shaped parts, such as engine housings, gearbox covers, and large castings.
Precision Parts Protection
With removable dividers, it can be used to handle workpieces that are prone to scratching each other or workpieces of different types.
- The chamber divider can also support batch processing, meeting your different needs.
Cost-Effective Operation
- One Machine Replaces Multiple Skilled Laborers
- Reusable Tumbling Media reduces consumable costs.
- Minimal Training Required - easy to operate.
Optional accessories

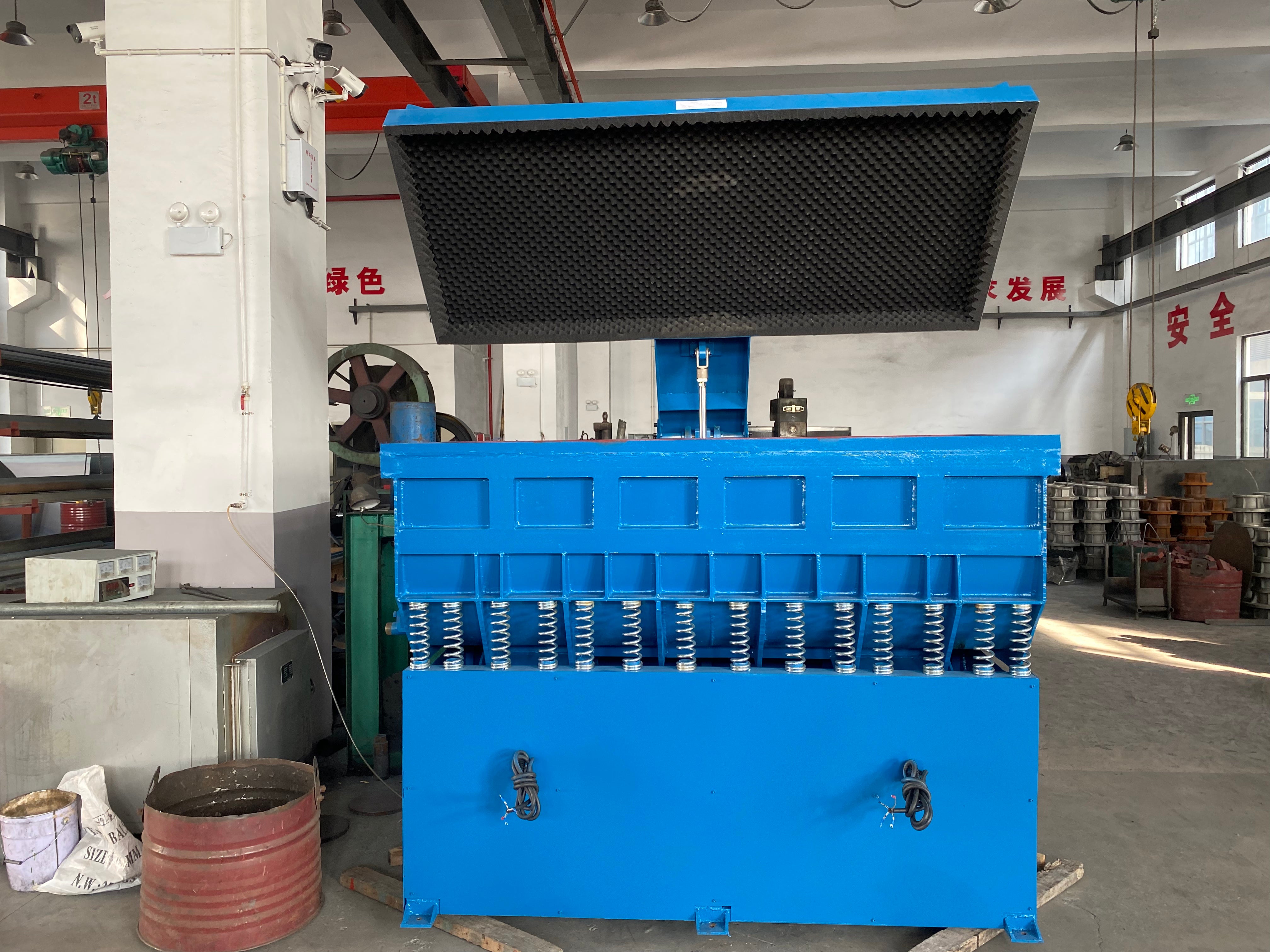

Optional soundproof cover
Reduces noise
Prevents splashing during operation

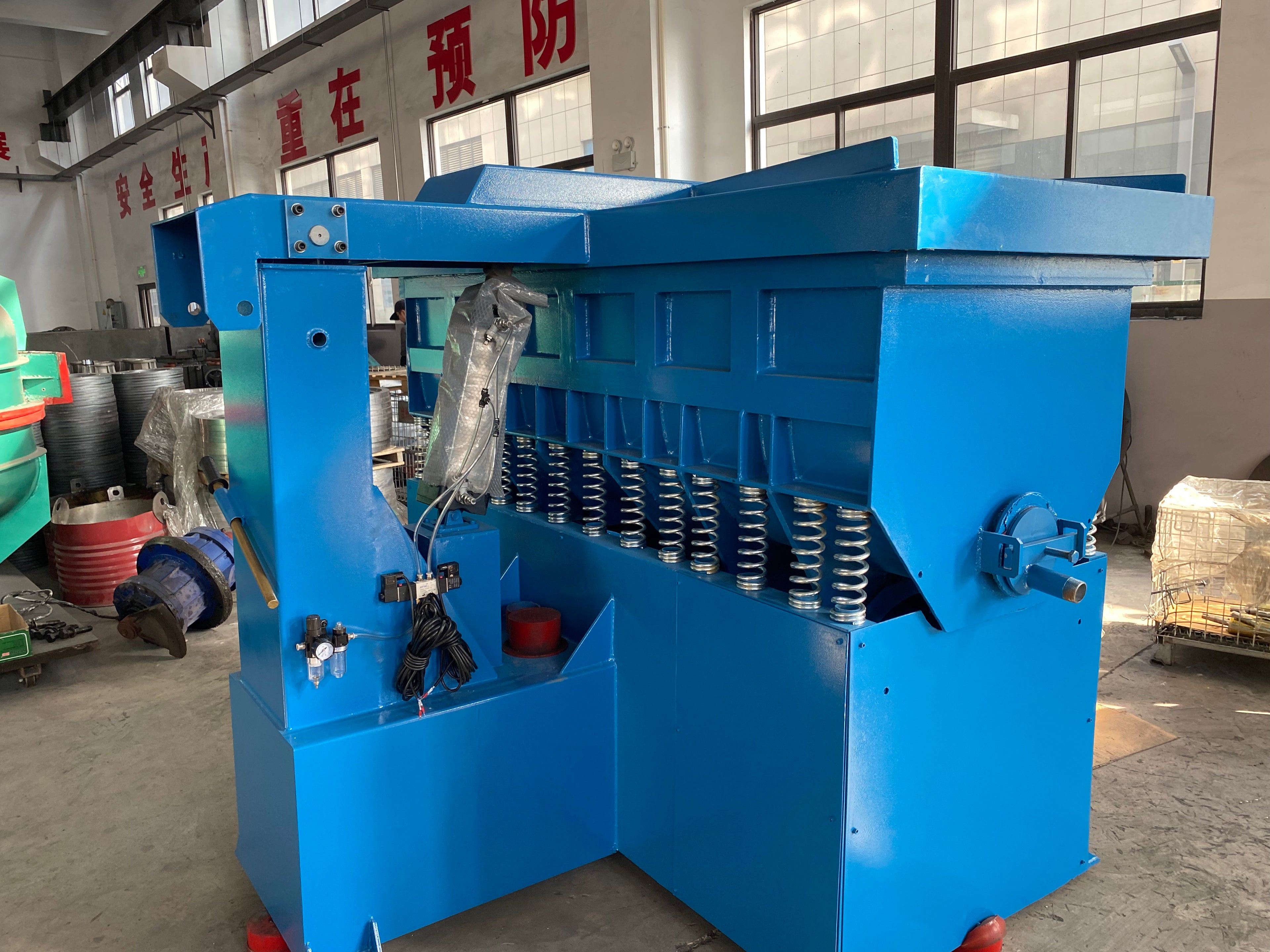

Vertical control panel with automatic lifting

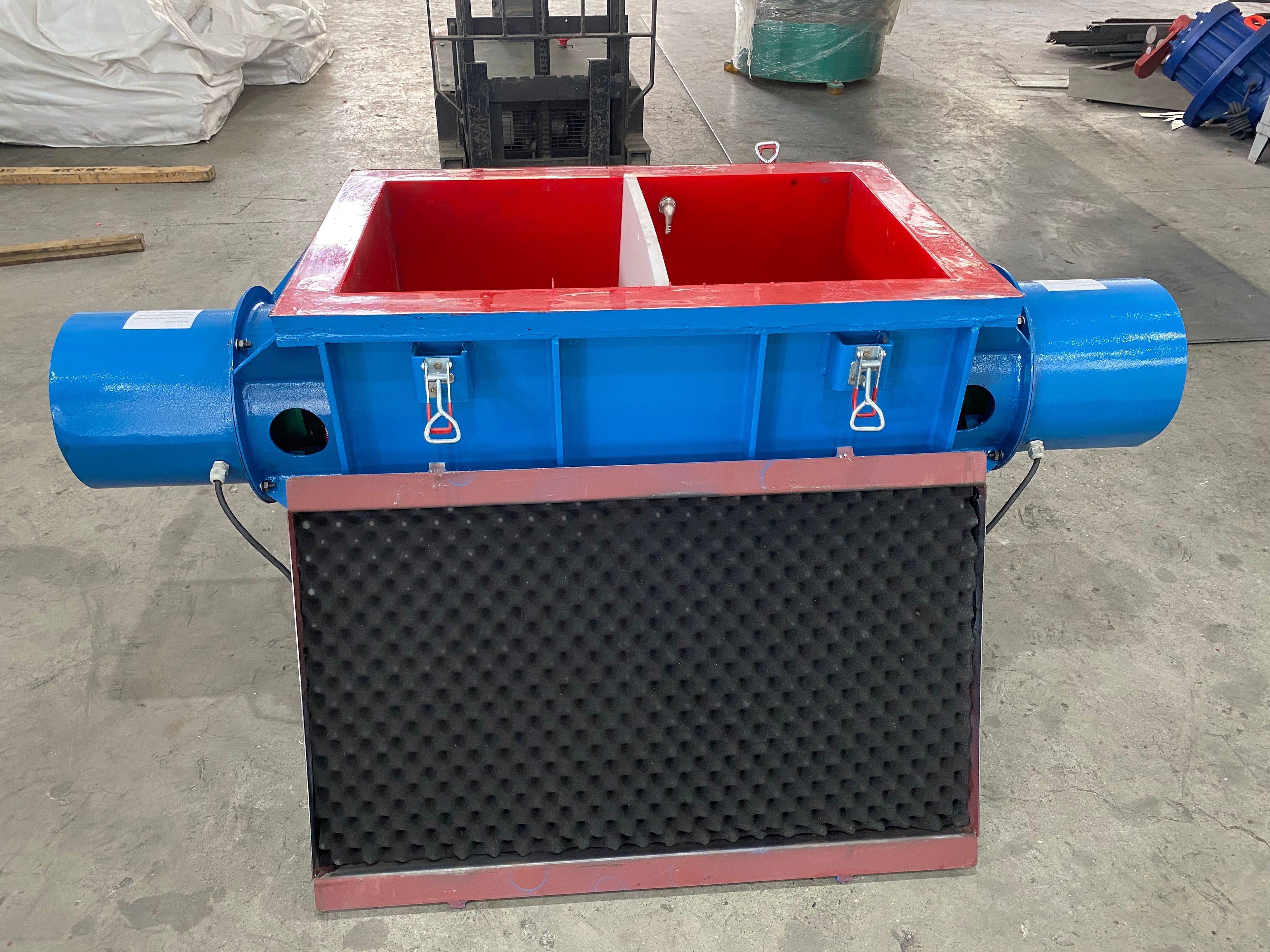

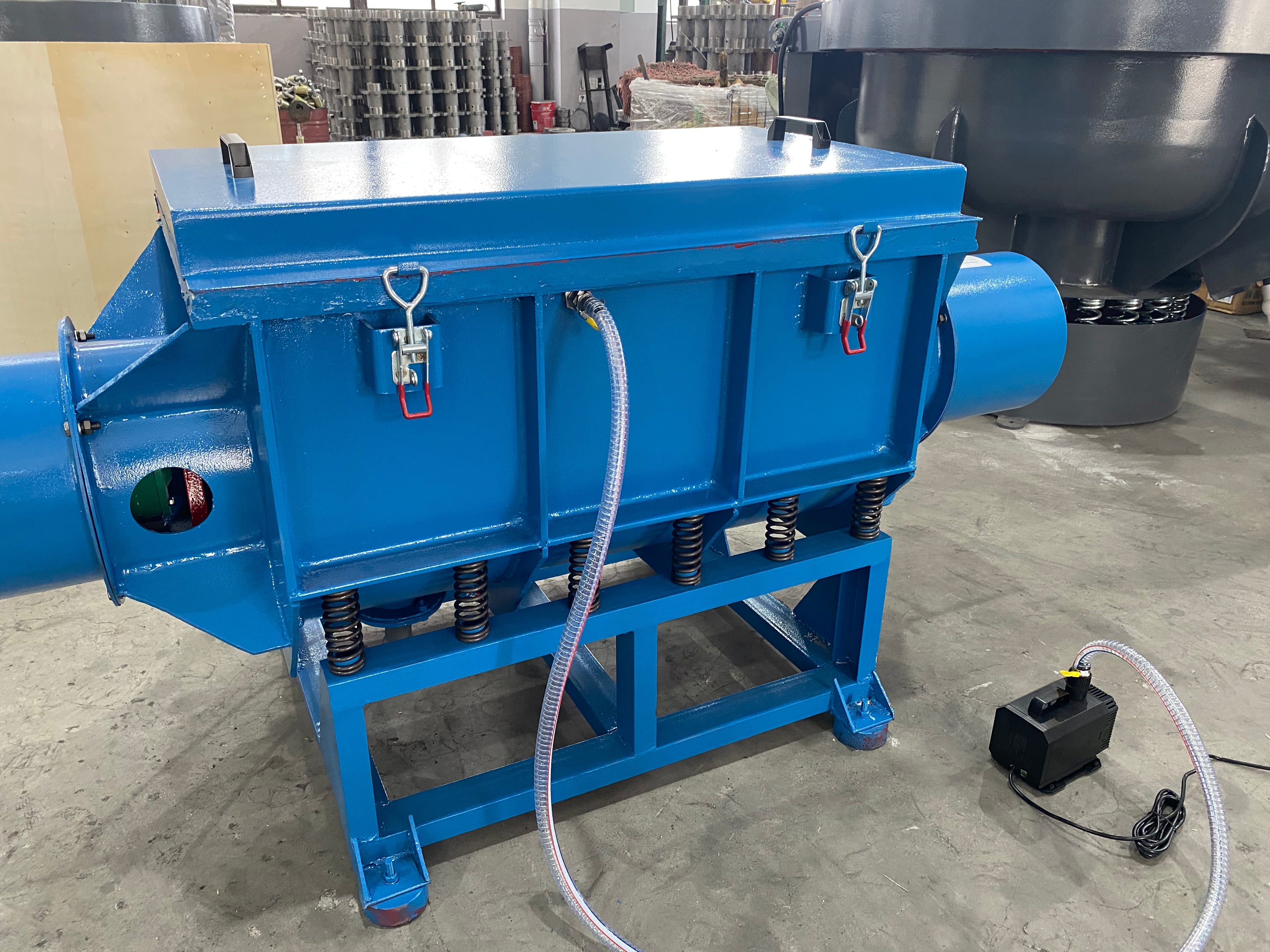

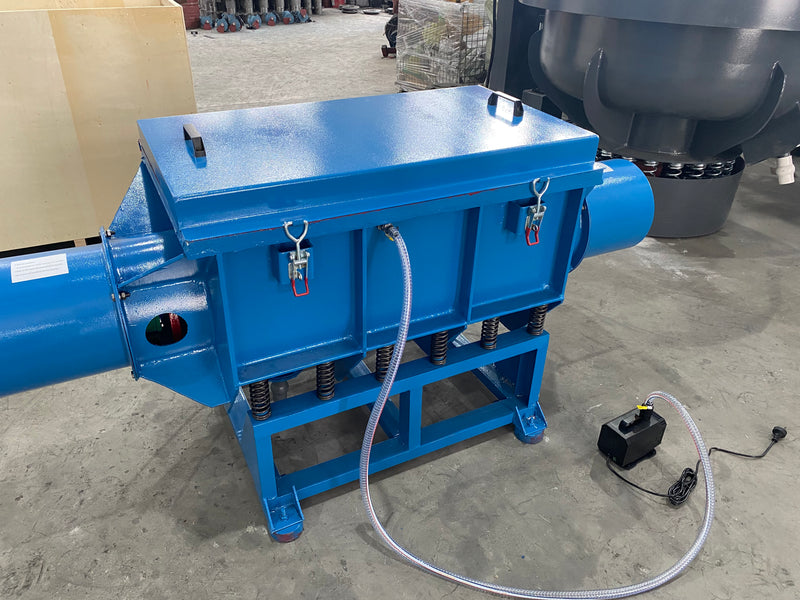

Simple cover
For small models only
Reduces noise slightly
Prevents liquid splashes during operation

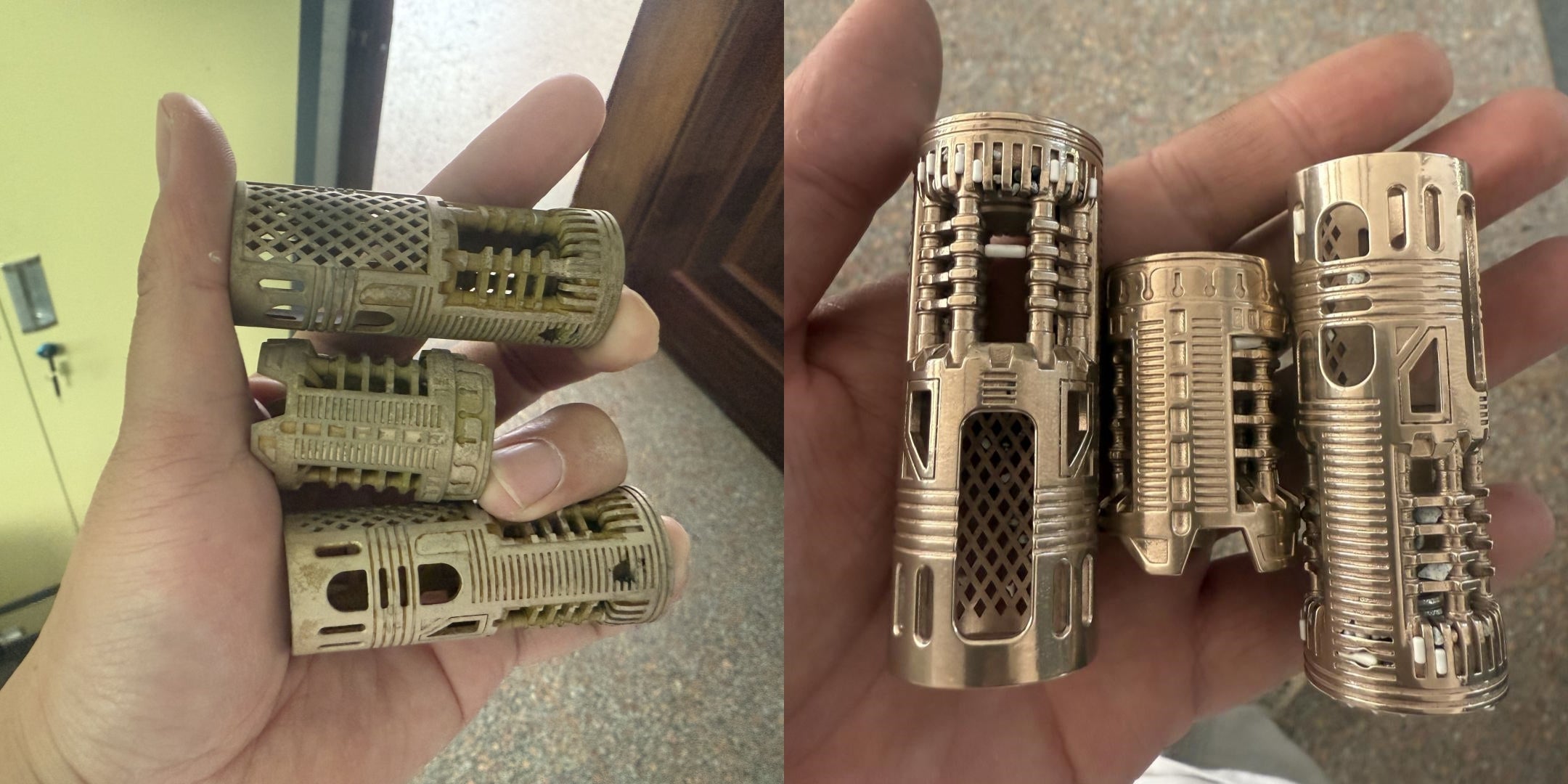

Application Examples

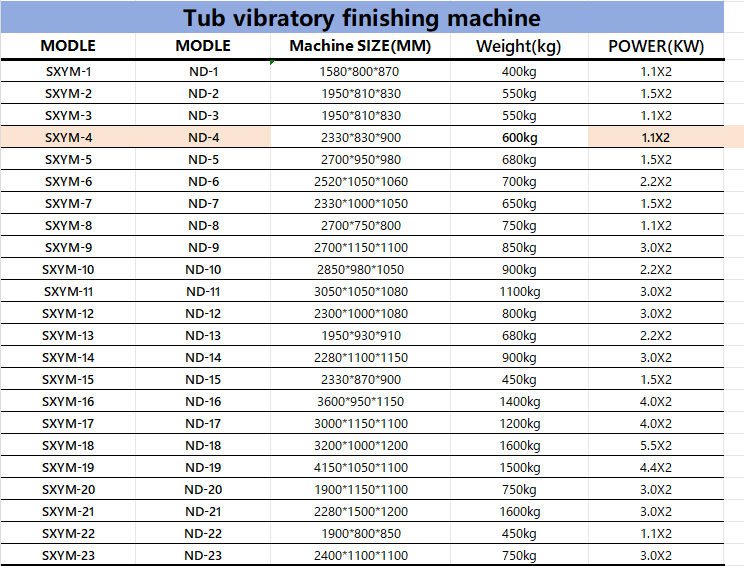

Product Specifications
Shop the look
How sample testing working
Let the Results Speak Before You Buy
✓ Eliminate guessing about machine fit
✓ Get optimal parameters for free
✓ Zero risk - you only pay for shipping
Why choose us
Delivery Services
We collaborate with reliable logistics partners to provide efficient logistics and delivery services.
After Sales Service
We offer a one-year warranty, online installation guidance, and online surface treatment solutions.
Quality Control
With over 20 years of expertise in polishing machinery, we guarantee quality and reliability.
Frequently asked questions
What is a Vibratory Tubs Finishing Machines?
Vibratory Tubs finishing troughs are ideal for polishing huge parts and irregular-shaped
parts. Round-shaped vibratory machines, though effective, can’t hold large or medium-sized parts. A rectangular container of the vibratory tub will be the best choice for finishing such parts. This machine is ideal for deburring engine components, cleaning
and polishing automotive exhaust pipes, and polishing granite parts, etc.
How Different Are Vibratory Tubs From Other Mass Finishing Machines?
- They have a rectangular-shaped chamber that has the opening on the top to fill the parts
and media. - The entire process is faster, cleaner, and smoother than many other mass finishing processes.
- This machine allows the operator to monitor the progress of the finishing process continuously.
Can the machine process parts with complex geometries?
Yes, the vibratory machine is excellent for complex parts. Our 3D vibration technology and TET-shaped media can effectively reach deep holes, blind holes, cross-drilled passages, internal cavities, and intricate surface features. This is a key advantage over manual polishing or other automated methods.
What Size Machine Do I Need for My Parts?
Machine selection depends on three key factors:
- Part Size The length, width, and shape of your parts determine the minimum working bowl size Ensure parts can move freely inside the machine without getting stuck.
- Batch Size How many parts do you need to process at one time? Larger batch sizes require larger capacity machines.
- Processing Volume Higher daily output requires a machine that can handle continuous operation
Need help? Send part details for sizing recommendation.
What Are The Different Applications Of A Vibratory Tub Finishing Machine?
- Automotive
The large size automotive parts that have complex shapes can quickly be finished using vibratory tubs.You can clean and polish parts like gear wheels, fasteners, engine heads, tooth flanks, and many more parts.
- Aerospace
The aerospace sector can make use of the vibratory tubs to bring down the overall finishing cost.Bigger parts like turbine blades, engine parts, etc. can be finished using this machine.
- Medical Devices And Equipment
Vibratory tubs are capable of delivering high-quality consistent finish for medical parts and devices, Medical parts will havecomplex and irregular shapes. So, they need to be finished separately. It can be done quickly with the help of a chamber separatoroption for the vibratory tubs.
- Marine Equipment Parts
All typed of marine equipment parts can be finished.
- Jewelry Parts and Accessories
The different jewelry parts made of gold, silver, platinum, and other precious metals can be polished using this machine.
- Architectural Hardware
You can achieve a beautiful finish for the hardware parts used in the architecture.
- Fancy Goods
Polishing of fancy goods can be done
- Potteries
It can be used to get that extra shine on the pots.
- Plastic Part
You can also deburr, clean, and polish plastic parts.
