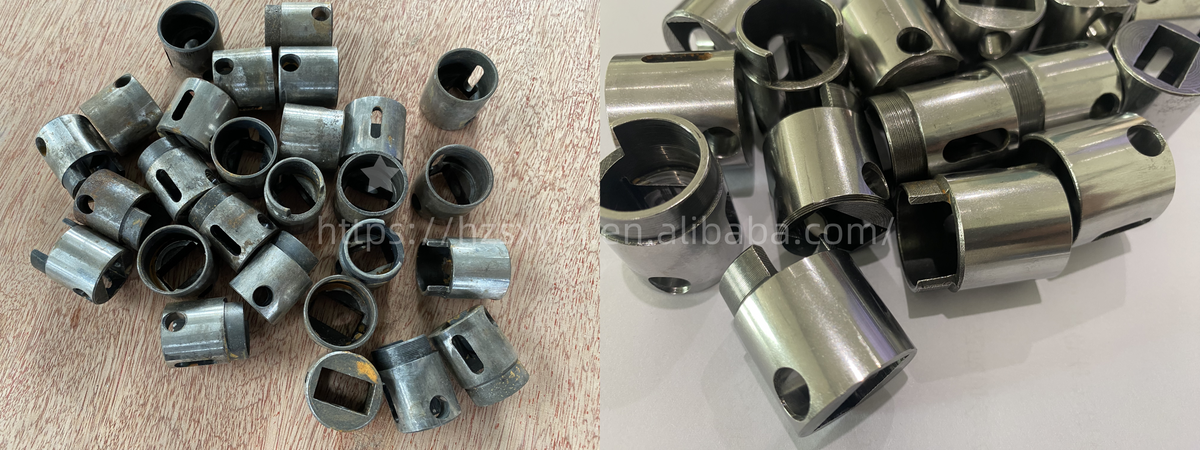

Struggling with dull surfaces, water spots, or dangerous manual buffing wheels? Here is the definitive engineering comparison and multi-stage recipe guide.
Are Your Polishing Lines Plagued By These Issues?
In high-end manufacturing—from luxury hardware and horology to aerospace valves and surgical instruments—the surface finish dictates product value. However, process engineers frequently hit a wall: Wet vibratory finishing excels at rapid deburring and edge radiusing, but often caps out at a satin luster. Conversely, traditional manual wheel buffing produces mirror gloss but creates safety hazards, inconsistent batches, and soaring labor overheads.
The secret to industrial-scale mirror polishing lies in understanding the boundary conditions between Wet Mass Finishing and Dry Organic Buffing, and mastering the multi-stage hybrid workflow.
The Mechanical & Chemical Physics: Wet vs. Dry
Wet Finishing Dynamics: Liquid compounds act as lubricants, coolants, and flush agents. Water creates a microscopic fluid film between abrasive media (ceramic/plastic) and metal workpieces. This maximizes material removal rates, flushes away sheared micro-chips, and prevents heat buildup. However, the presence of liquid inhibits ultra-fine micro-friction, preventing the metal surface from achieving optical-level specularity.
Dry Finishing Dynamics: Dry processing utilizes organic carriers (ground walnut shells or corn cob granules) impregnated with sub-micron diamond, alumina, or chromium oxide polishing pastes. Operating without liquid, the organic granules absorb heat and generate precise thermo-mechanical friction. This micro-burnishes surface asperities without cutting, achieving a flawless, streak-free mirror shine ($R_a < 0.025\,\mu\text{m}$).
Attempting to achieve mirror gloss in a single wet stage results in media glazing and orange-peel defects. Transitioning from a wet deburring stage to a dry organic buffing stage cuts total processing time by 45%, eliminates manual wheel buffing entirely, and reduces wastewater generation by up to 70%.
Technical Comparison: Wet vs. Dry Mass Finishing
| Parameter | Wet Vibratory Finishing | Dry Organic Buffing |
|---|---|---|
| Primary Function | Heavy deburring, descaling, radiusing | High-gloss buffing, mirror polishing, drying |
| Achievable Roughness ($R_a$) | $R_a\ 0.2\,\mu\text{m} - 3.2\,\mu\text{m}$ (Matte to Satin) | $R_a < 0.025\,\mu\text{m} - 0.1\,\mu\text{m}$ (Mirror Luster) |
| Typical Media Used | Ceramic (Alumina/SiC), Synthetic Resin/Plastic | Ground Walnut Shells, Corn Cob Granules |
| Chemical Additives | Liquid Compounds (ALU series, Rust Inhibitors) | Dry Polishing Pastes (Diamond/Alumina dust) |
| Wastewater & Effluent | Requires settling tanks & filtration systems | Zero liquid effluent (100% dry process) |
The Proven 3-Stage "Wet-to-Dry" Hybrid Process Recipe
To achieve a optical mirror finish on raw CNC, cast, or stamped metal parts without manual labor, process engineers must implement a progressive "Wet-to-Dry" strategy. Below is Norden's standardized recipe for luxury stainless steel and brass components:
| Stage & Type | Media Selection | Compound / Paste | Cycle Time | Target Result ($R_a$) |
|---|---|---|---|---|
| Stage 1: Wet Deburring | Medium Ceramic Triangles (4x4mm) | Neutral Cleaner / Surfactant (2%) | 60 - 90 mins | Burrs sheared, parting lines leveled ($R_a \approx 0.8\,\mu\text{m}$) |
| Stage 2: Wet Smoothing | Fine Polyester Cones (3x3mm) | ALU Brightening Compound (1.5%) | 45 - 60 mins | Tool marks eliminated, satin sheen ($R_a \approx 0.2\,\mu\text{m}$) |
| Stage 3: Dry Mirror Buffing | Ground Walnut Shells (0.8-1.3mm) | Alumina Micro-Paste Impregnated | 30 - 45 mins | Deep streak-free mirror gloss ($R_a < 0.025\,\mu\text{m}$) |
Hardware Requirements for Dry Buffing Success
Dry finishing generates higher friction temperatures than wet finishing. Standard vibratory bowls without thermal control or variable speed can cause organic media to scorch or agglomerate. Norden machines are engineered specifically for hybrid operations:
Hot-Pour PU Liner Resistance
Meaning what? Norden's 15mm-20mm hot-pour polyurethane lining withstands dry frictional temperatures up to 90°C without softening, outlasting cheap glued rubber liners by 5x.
VFD Dynamic Speed Tuning
Meaning what? Integrated Variable Frequency Drive (VFD) controls allow operators to lower amplitude during dry buffing, preventing delicate parts from colliding while maintaining fluid organic media flow.
Dust Extraction Port Integration
Meaning what? Built-in vacuum extraction flanges continuously remove fine organic dust particles during dry cycles, keeping the shop floor clean and compliant with air quality standards.
Want to Achieve Mirror Gloss Without Manual Buffing?
Send 2-3 of your raw or rough-cut metal parts to Norden’s application laboratory. Our engineers will run a free wet-to-dry test, measure surface roughness ($R_a$), and send back a full report with processed samples.
Ship 2-3 untreated or rough parts directly to our engineering lab.
We run wet deburring + dry organic buffing to hit target $R_a$ specs.
Receive mirror-polished parts, run-time videos, and guaranteed media recipes.
0 comments
