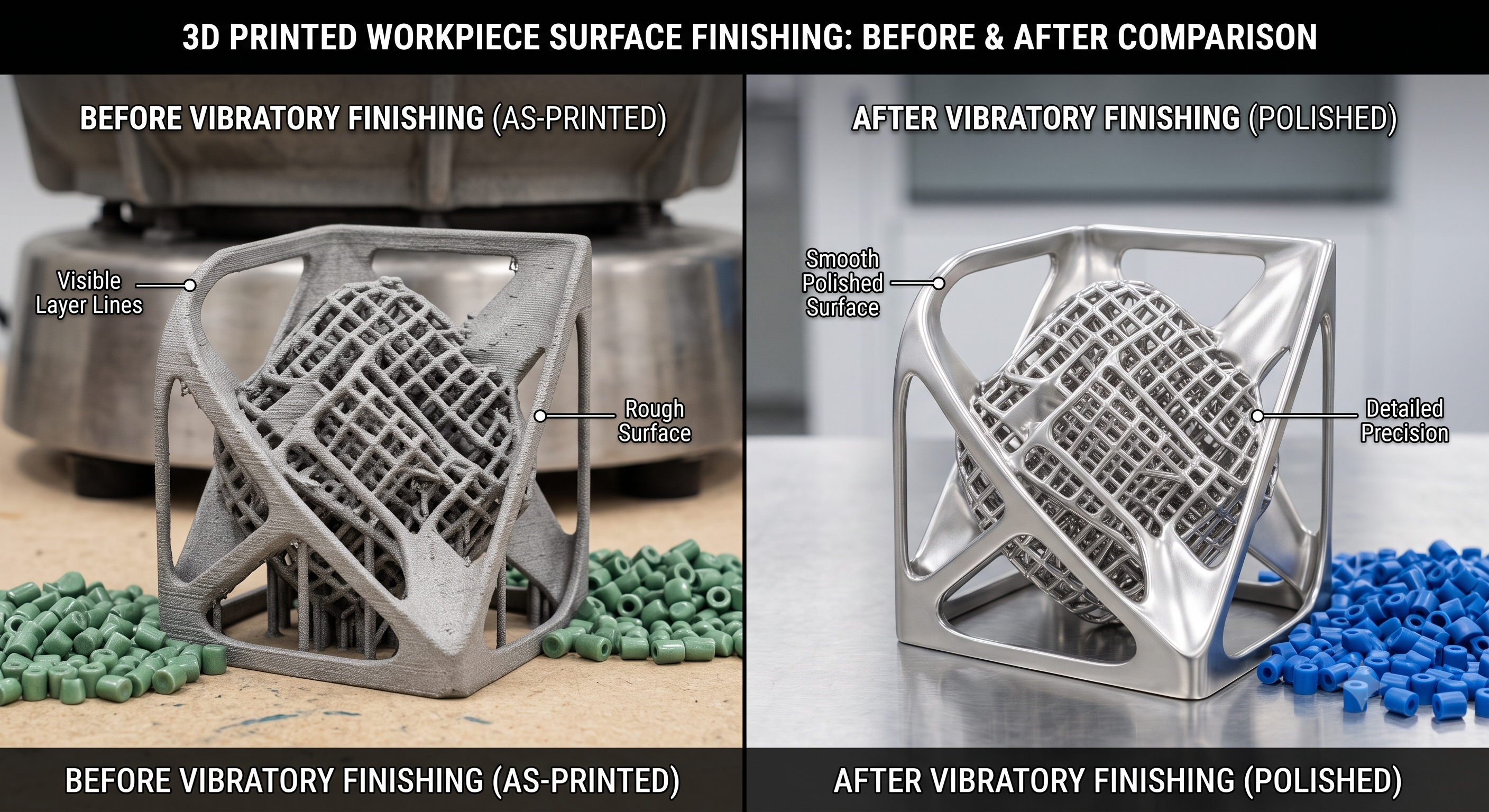

3D Printed Parts Finishing: Vibratory Post-Processing for Batch Production

3D Printed Parts Finishing: Vibratory Post-Processing for Batch Production

Your 3D printed parts come off the build plate looking rough — visible layer lines, support scaffolding marks, and surface inconsistencies that lower final product value. Manual sanding is painfully slow, operator-dependent, and impossible to scale. Chemical vapor smoothing only works on specific plastics and introduces strict environmental/compliance complications. If you are producing 3D printed parts in volume, you need a post-processing workflow that is highly repeatable, automated, and batch-friendly.

Why As-Built 3D Printed Parts Require Surface Post-Processing

No matter which 3D printing technology you use — FDM, SLS, MJF, SLA, or metal DMLS/SLM — the as-built surface finishes rarely match commercial product quality requirements. The additive layer-by-layer deposition process inherently creates distinct mechanical surface challenges:

  • Layer Lines & Striations: Pronounced horizontal step-effects on FDM; finer but visible lines on SLS and SLA prints.
  • Scaffolding Remnants: Pitted, rough sections left behind where mechanical metal or polymer support structures attached to overhangs.
  • Extreme Surface Roughness: Raw 3D prints typically hold an $Ra$ range from $3.2\,\mu\text{m}$ to $12.5\,\mu\text{m}$, failing functional or cosmetic inspection benchmarks.
  • Loose Sintered Media: Residual un-melted alloy powder trapped in deep grooves or uncured gummy resins adhering to flat faces.

Comparing Post-Processing Methods: Why Vibratory Mass Finishing Wins

Before standardizing your post-printing production line, it is critical to evaluate what each finishing technology actually costs you in labor, repeatability, and structural dimensional accuracy:

Method Quality Repeatability Batch Scalability Labor Cost Main Process Risk
Manual Hand-Sanding Operator dependent (Poor) Poor Very High Fatigue, geometric errors, flat spots
Vapor Smoothing High Moderate Low Dimensional distortion, thin wall melt
Manual Media Blasting Moderate Good Moderate Severe edge rounding, uneven operator path
Vibratory Mass Finishing Very High Excellent Very Low Media trapped in narrow channels

The Operational Verdict: For batches exceeding 10 print cycles, a Vibratory Finishing Bowl or high-energy Centrifugal Disc Finisher is the only scalable solution. It ensures every single part in the tank receives identical motor excitation force, identical media pressure, and automated consistency, running unattended.

Step-by-Step: Processing Plastic 3D Printed Parts (FDM / SLS / SLA)

Plastics are low-density substrates. Edges are easily damaged if you use overly heavy media. Use this standard dual-stage wet-to-dry recipe to eliminate step-lines cleanly:

• Stage 1: Layer Line Elimination (Wet Process)

Load parts into a vibratory polishing bowl with low-density Plastic Tumbling Media (Cones or Triangles, 2000# grit, 10–15mm). Introduce a mild deburring compound or neutral cleaner dissolved at 1–2% by volume with continuous fresh water flow. Run for 2 to 4 hours depending on layer print heights, inspecting every 60 minutes. This flattens ridges and support nubs into a uniform, matte surface texture.

• Stage 2: Haze Removal & Final Brightening (Dry Process)

Rinse parts and transfer them to a dry vibratory drum pre-loaded with ultra-fine organic Walnut Shell Media (10–20#) pre-loaded with polishing paste. Process dry for 1 to 2 hours. This clear-cuts the plastic haze, brightens colors, and completely dries the components, rendering them instantly ready for packaging or paint lines.

Step-by-Step: Processing Metal 3D Printed Parts (DMLS / SLM / EBM)

Direct Metal Laser Sintered (DMLS) parts (Stainless Steel, Titanium, Inconel) exhibit intense initial roughness. Reaching aerospace or medical finish metrics requires a heavy-density material removal approach:

• Stage 1: Blending Support Remnants (High-Energy)

Pair parts inside a high-vibration barrel or centrifugal disc system with angular High-Alumina Ceramic Media. Add a heavy-cut cutting compound (2–3% concentration). Run for 2 to 4 hours. This aggressive mechanical step targets raised support marks and flattens sintered alloy clusters.

• Stage 2: Geometric Surface Refinement

Thoroughly flush the tank. Switch to a softer polymer or fine 2000# plastic cone matrix to shave away the aggressive micro-scratches left by stage 1 ceramics. Run for 2 to 4 hours with clean chemical surfactants.

• Stage 3: High-Luster Burnishing (Optional)

Run components for **1 to 2 hours** with high-purity **Porcelain Media** or fine **Stainless Steel Balls** paired with an automated brightening lubricant. This achieves a reflective mirror gloss ($Ra < 0.4\,\mu\text{m}$) without edge roll or alteration of critical structural geometries.

Media & Process Quick Reference by Material Type

3D Print Material Technology Stage 1 Media Stage 2 Media Key Workshop Consideration
PLA / PETG FDM Plastic 2000# Cone Walnut Shell Fine Soft matrix. Avoid ceramics. Keep cycles short to prevent thermal friction softening.
Nylon (PA11/PA12) SLS / MJF Plastic 1200# Cone Walnut Shell Fine MJF parts hold deep un-melted powder. Pre-clean ultrasonically before loading.
UV Resin SLA / DLP Plastic Fine 500# Corn Cob Gentle Extremely brittle. Ensure parts are 100% post-cured to prevent media gumming.
Stainless Steel DMLS Ceramic High-Alumina Porcelain Burnish Requires a dedicated fluid flush between cut and burnish stages to stop scratch carryover.
Titanium (Ti6Al4V) SLM Ceramic SiC / Porcelain Plastic Fine-Cut STRICTLY FORBIDDEN: Steel media runs. Risk of permanent hydrogen absorption embrittlement.

Stop Scraping Delicate Thin-Walled Prints

Fine structural lattices (wall segments < 1.5mm) can fracture easily under unmatched vibratory loads. Don't guess your production recipe and risk bulk scrap. Mail your target raw prints directly to our application engineering lab. We will run localized simulations and deliver a data-backed roughness profile report — completely free of charge.

Frequently Asked Questions (FAQ)

Q1: Can I tumble FDM parts directly with water-soluble supports intact?

A: Strictly no. Dissolving water-soluble matrices (like PVA or Soluble BVOH) inside a wet vibratory bowl creates an extremely thick, gummy slurry that glazes over your tumbling stones and ruins cutting efficiency. Always fully soak and eliminate soluble scaffolds in an isolated pre-wash tank, dry the parts completely, and then proceed with mass finishing.

Q2: How do I choose part print parameters to minimize post-processing cycles?

A: Simple slicing adjustments dramatically compress mass finishing times. Standardize a 0° or 45° raster angle over a 90° layout to make layer line mechanical shear easier. For selective laser metal melting, decreasing recoater speeds yields a much denser as-printed skin layer that responds faster to ceramic step-line blending.

Q3: What are the primary risks of over-processing 3D prints in high-vibration systems?

A: Over-processing soft thermoplastics under heavy media loads leads to dimensional edge rounding, surface roll, and stress cracking. Always calibrate specific weight-to-volume part loading limits, utilize custom dividers or parts baskets to halt part-on-part collisions, and check progress every 30 minutes.
